| Model number | Frequency | Volume | Bell diameter | Voltage | Current | Certificates | Weight |
|---|---|---|---|---|---|---|---|
| SBE130 | 400Hz | 95dB | 120mm | DC24V | 0.044A |  |
2.27kg |
| AC110V | 0.044A | ||||||
| AC220V | 0.022A |

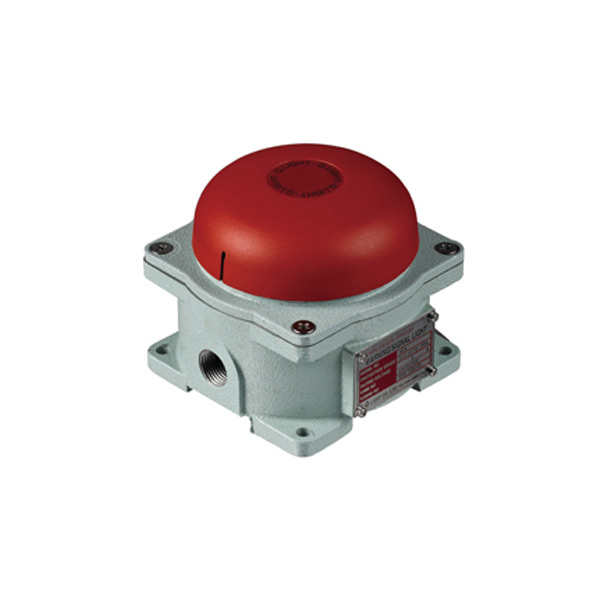

SBE130
Explosion Proof Alarm Bell
Max.95dB
Max.95dB
Adopts special solenoid bell structure, sutable in vessels which encounter serious vibration and impact or outdoor plants application
- Explosion Proof Alarm Bell for Audible signal in dangerous area
- Adopts special solenoid bell structure, sutable in vessels which encounter serious vibration and impact or outdoor plants application
- Fully enclosed structure with protection rating of IP56
- Sound volume : Max. 95dB at 1m
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Housing-Al, Bell-Al
- Certificates : KIMM
- Protection rating: Ex d ⅡC T6, IP56
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
