| Model number |
Voltage | Current | Sound pattern and volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SHD2L
SHD2LP |
DC12V | 4.722A | •WS -5 Warning sounds : 118dBx2 •WP -5 Special warning sounds : 118dBx2 •WM -5 Melodies : 118dBx2 •WA -5 Alarms : 116dBx2 •WV -5 Customizable voices : 113dBx2 |
SHD2L DC-4.07kg AC-4.45kgSHD2LP DC-4.32kg AC-4.70kg |
R-Red A-Amber G-Green B-Blue |
|
| DC24V | 2.188A | |||||
| AC110V | 0.513A | |||||
| AC220V | 0.256A |

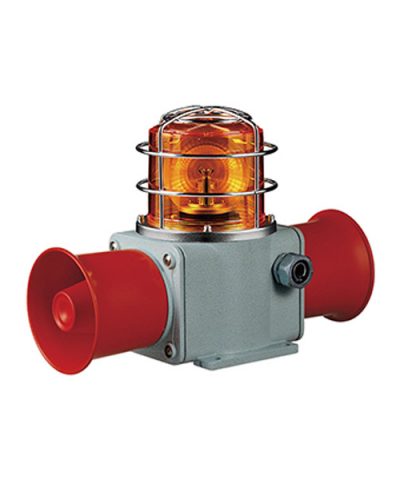

SHD2L
Heavy-Duty LED Steady/Flashing Warning Light & Electric Horn Combination for Vessels and Heavy Industry Applications
Max.118dBx2
Max.118dBx2
Warning light and electric horn combinations with excellent durability and perfectly enclosed structure, designed for vessels and heavy industry applications
- Warning light and electric horn combination models for vessels and heavy industries applications
- Aluminum housing and polycarbonate lens material provides excellent durability under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Superior impact and shock resistance
- Equipped with a wire guard
- Terminal box located inside the housing
- Can adjust sound volume and select sound pattern with the switches built inside the products
- Uniform and clear light diffusion with multi layered LED light distribution reflector
- Cable entry : 1/2″ PF
- Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Reflector-Heat resistance ABS
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Flashing rate : 60-80 flashes/min(Built-in steady/flashing selection switch)
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP66
- Certificates : KIMM, ABS, CE Compliant
