SIGMA R 500
IP66
Protection
Rating
Rating
3G
Vibration
Test
Test
10KV
Surge
Protection
Protection
IK09
Impact
Protection
Protection
| General | |
| Power | 500 W |
| Total Lumen | 65000 to 83500 lm |
| Net Weight | 22.8 kg |

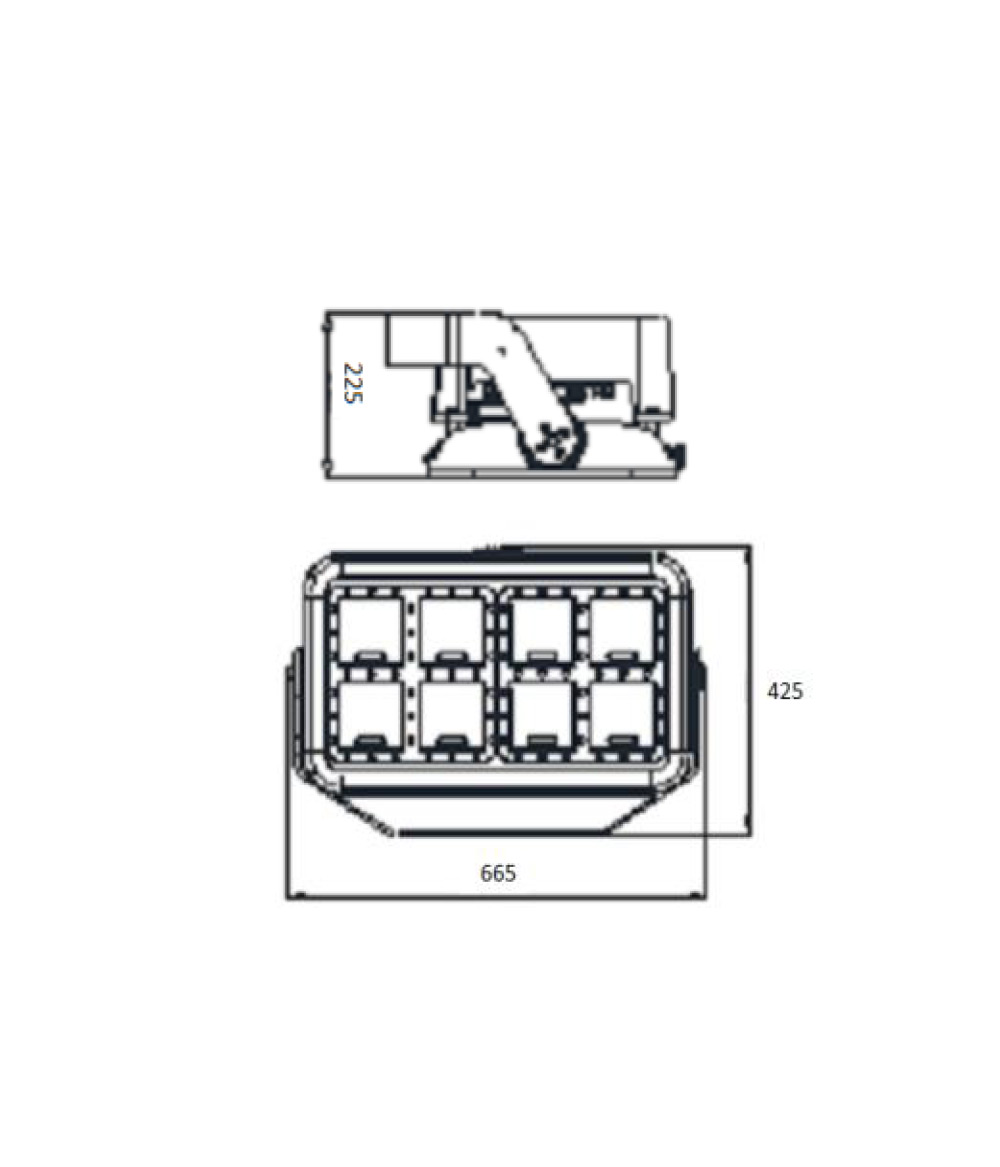

| Dimension (L*W*H) | 665*425*225 (mm) |
| Mechanical and Electrical | |
| Voltage | 100 to 240 VAC |
| Frequency | 50 to 60Hz |
| Power Factor | ≥0.95 |
| Temp. Tolerance | -400C to 500C |
| Lumen Efficacy | 130 to 167 LPW |
| CCT | 5000K (3 – 4000K option) |
| CRI | ≥Ra 70 |
| LED Lifespan | >50000 hours+ to L80 |
| Mechanical and Housing | |
| Housing | Die cast aluminum |
| Optic | Polycarbonate |
| Mounting device | Mounting Bracket Adjustable |
| Control and Dimming | |
| Dimmable | Optional |
| Safety and Protection | |
| Protection Rating | IP66 |
| Surge Protection | 10 KV (20 KV option) |
| Impact Protection | IK09 |
| Product Certification | |
| Certification | CE CB |
| Special Features | |
| Vibration Resistance | 3G |
| Corrosion Resistance | – |
