SNESL

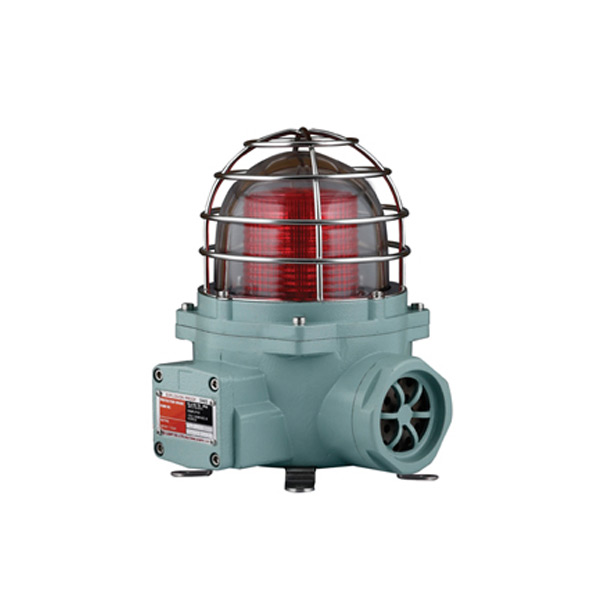

Ø130mm ATEX, IECEx, CE and KC Marked Explosion Proof LED Steady/Flashing Signal Light with Siren Buzzer/ ATEX Beacon Sounder
Max.105dB
Max.105dB
Long-lasting high intensity LED light source
- Light weight and compact explosion proof warning lights with a siren buzzer
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Long-lasting high intensity LED light source
- Suitable for applications where bulb replacement is hard
- Built in switch for steady/flashing selection
- Flashing rate : 60-80 flashes/min
- Integrated housing and terminal box model
- Sound type and sound volume : Siren buzzer- Max. 105dB at 1m/ 7 sounds buzzer, Max. 95dB at 1m
- User selected built-in buzzer with 7 sound patterns available upon request
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Inner lens-PC, housing-Al, Protection cage-STS316L, Reflector-ABS
- Certificates : IECEx, ATEX, NEPSI, KIMM, KOSHA, CCS
- Protection rating :
IECEx – Ex d ⅡC T6 Gb, IP66
ATEX – Ⅱ2G Ex d ⅡC T6, IP66
KOSHA – Ex dⅡB+H2 T6
NEPSI, KIMM – Ex d ⅡC T6, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
