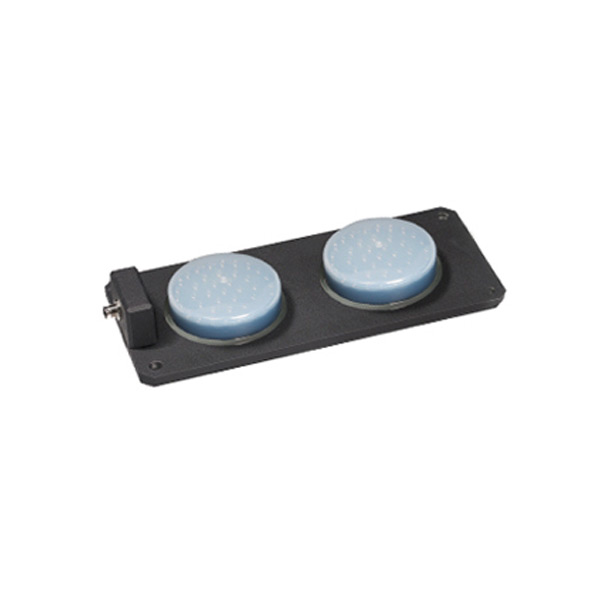

SSL200W

LED Signal Lights for Container Spreaders

Provides excellent durability to extreme vibration and shock

  • Special anti-reflective lens applied to avoid mistaking the reflected sun light as a signal light
  • Suitable for container spreader, harbor loading equipment, and outdoor conveyor applications
  • Superior durability in extreme vibration and shock thanks to a molded assembly process instead of conventional bolt fastened assembly method
  • Customized color arrangement available(Lens color configuration is initiated from the side of cable entry)
  • Materials : Housing-Al, Lens-PC
  • Protection rating : IP68 (IEC60529)

Product Specifications

Model number Voltage Current Certificates Weight Cable Entry Color
SSL200W DC12V 0.560A – 2.15kg M12-5PIN (male)

C10-Cable
(Customization)

  R-Red
 G-Green

SSL series Vibration and Shock Test Conditions

Axial direction Direction X Direction Y Direction Z
Vibration test
conditions		 10-38 Hz, 3.5mm
38-500 Hz, 20g
1 oct/min, 2 hours		 10-38 Hz, 3.5mm
38-500 Hz, 20g
1 oct/min, 2 hours		 10-38 Hz, 3.5mm
38-500 Hz, 20g
1 oct/min, 2 hours
Shock test
conditions		 50g
6 ms
±1000 shocks		 50g
6 ms
±1000 shocks		 50g
6 ms
±1000 shocks
